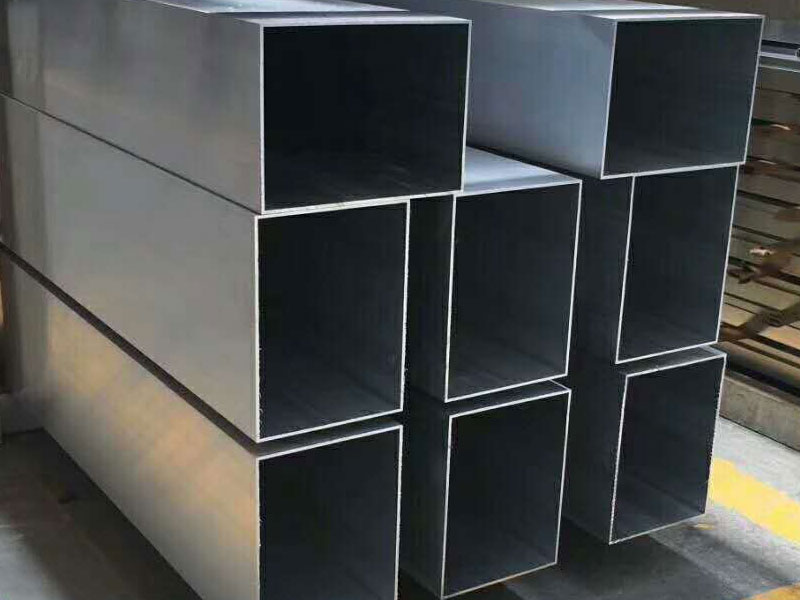

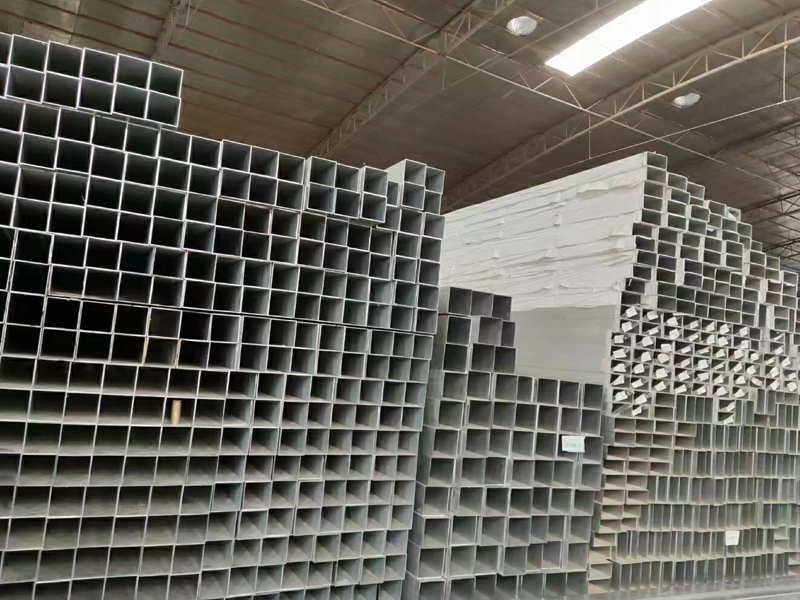

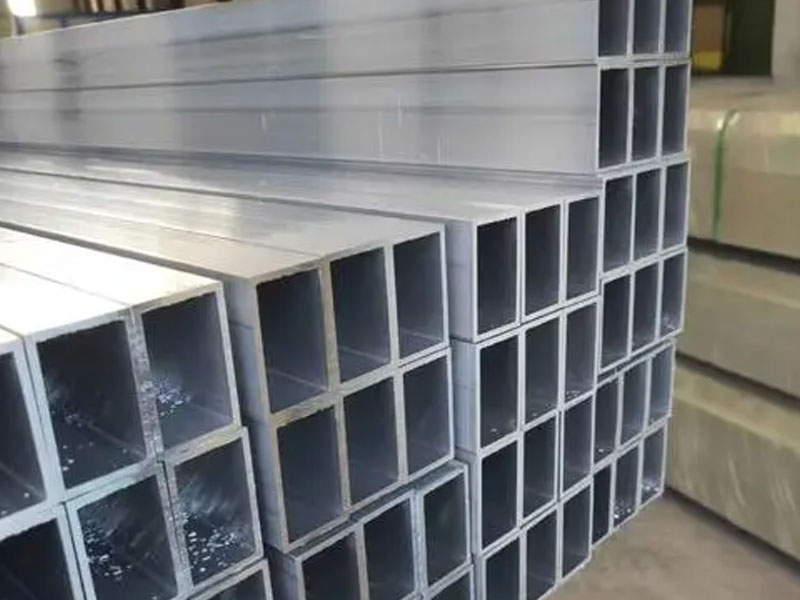

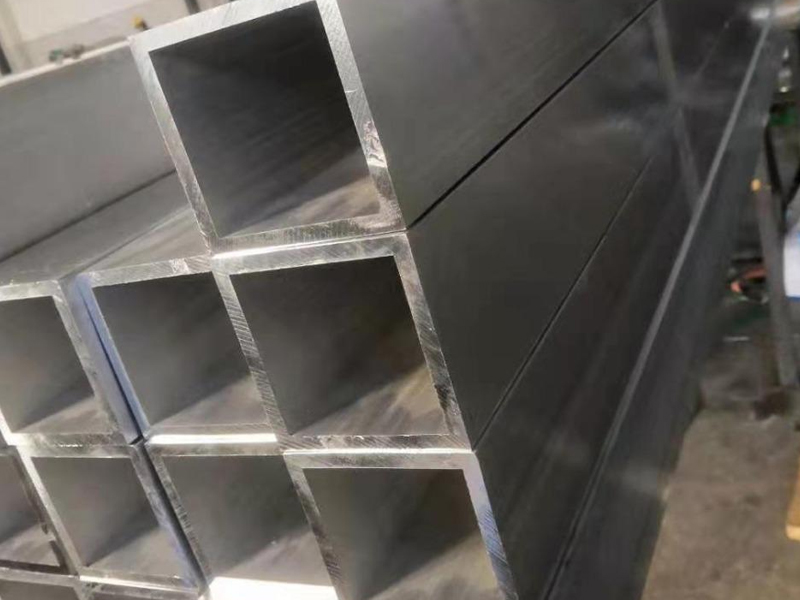

Aluminum Square Pipe/Tube

Brief Introduction：

Aluminum tubes can have one or more closed through-holes, uniform wall thickness, cross-section, and are delivered in straight lines or rolls. Widely used in automobile, ship, aerospace, aviation, electrical appliances, agriculture, electromechanical, household and other industries.

Online consultation：

HardyZhao@dfdnmetal.com

+86 13101961151

Send request within 1 minute

12 hour personalized solution

Visit the factory at any time

Shipped within 10-15 days

Regular monitoring of the project

Quality assurance and after-sales service

Product Details

Basic parameters

FAQ

Video

Product details

Product quality inspection

In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.

Packaging shipping

Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.

Product parameters

Item	Aluminum pipe , Aluminum Square tube
Standard	ASTM,JIS,SUS,DIN,GB,EN,etc.
Size	Diameter:3mm-800mm
Size	Length:1m-12m or as required.
Surface	Anodizing,brush,sand blast,powder coating,polished,mill,polished,etc.
Application	Widely used in Automobiles, ships, aerospace, aviation,electrical appliances,
Application	agriculture,electromechanical,household appliances, etc.
Package	Standard export package,suit for all kinds of transportation,or as customer's requirement.
Container size	20ft GP:5898mm(Length)2352mm(Width)2393mm(High)
	40ft GP:12032mm(Length)2352mm(Width)2393mm(High)
	40ft HC:12032mm(Length)2352mm(Width)2393mm(High)

Chemical Composition

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Product parameters

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6



Q1:How to choose the best metal material supplier in China?

A1:Your metal material supplier should provide you with the best solution in a timely manner.

They should provide competitive prices and high-quality services to support your project



Q2:What is the minimum order quantity for steel?

A2:If samples are in stock, the minimum order quantity will be even less. Customization for small sizes is also possible.
For custom orders, the minimum trial order quantity is 100 kilograms.



Q3:How to ensure the quality of metal materials?

A3:According to customer requirements, we ensure that the testing meets international standards and provide material certificates.

We have advanced testing equipment to analyze the metal composition and ensure the high quality of finished metal materials.



Q4:Can you help us provide samples?

A4:We have a large inventory of high-quality metal materials. If the sample you requested is the same in our inventory, we will deliver it free of charge through international express delivery.



Q5:How To Avoid The Damage Of Goods During Shipment?

A5:Checking and packaging your goods well before shipment.
Do reinforce your goods well in the container.
Discussing with our shipping agent and loading a reasonable amount of goods in the container.



Q6:What documents and certificates can you provide?

A6:We can provide all the documents required for customs clearance and registration (MSDS, product formulations, COA, assessment reports, etc.). Free trade certificates, SGS,ISO9001 FDA certification, etc. are not a problem. Please feel free to contact us.



Q7:Can we visit the source factory ourselves?

A7:Of course, before placing an order, we can provide a detailed description of the factory's production environment. During the product production process, we have dedicated personnel to supervise the production process and issue product inspection reports. If you need to visit the factory in person, we will provide reception services, but you need to sign the order commission agreement in advance.
